Grade 7 Titanium Plates

Titanium is a new type of metal, the performance of titanium is related to the content of carbon, nitrogen, hydrogen, oxygen and other impurities, pure titanium iodide impurity content does not exceed 0.1%, but its strength is low, high plasticity. The performance of 99.5% industrial pure titanium is: density = 4.5 g/cm3, melting point of 1800℃, thermal conductivity = 15.24W/(m.K), tensile strength b=539MPa, elongation =25%, section shrinkage =25%, elastic modulus E=1.078105MPa, hardness HB195.

Grade 7 titanium plates, also call as grade 7 titanium -Palladium plates. They are corrosion resistant alpha unalloyed titanium. Grade 7 titanium has added 0.12% - 0.25% palladium in it  which improve the metal's corrosion resistance in mineral acids and strong brine. Due to this outstanding advantage, grade 7 titanium sheets are welcomed and popular in the chemical industries, such as reactor autoclaves, pipe and fittings, valves, condensers, fans,etc.

Chemical requirements (%)of gr7 titanium plates

• Nitrogen: 0.03 Max

• Carton: 0.08 Max

• Hydrogen: 0.015 Max

• Iron: 0.30 Max

• Oxygen: 0.25 Max

• Palladium: 0.12-0.25%

• Titanium: balance

Surface of grade 7 titanium sheets

Due to the application, grade 7 titanium plates ' surface always descaled. The surface is flat, free of oil and dust. Thicker plates can be sandblasted after descaled. Here below are two images for descaled surface and sandblasted surface. Both surfaces are qualified and meet standard requiements.

Sandblasted surface

descaled surface

Services

• Cut to size service - we can use our shearing or other cutting machines to cut the grade 7 titanium plates into required sizes according to order.



• Cut to shape service - Linear cutting/water cutting machines will be used to cut round , square, oval, or any other shapes according to drawing.

•

Bending and welding service - We can help customers bend the titanium plate/titanium sheet into tubing shape and offer welding service. For welding service, we  supply RT test report for quality assurance.

Gr7 titanium plates cut to shape acc. order

Grade 7 titanium plate bend and weld to tubing acc. order

Shearing

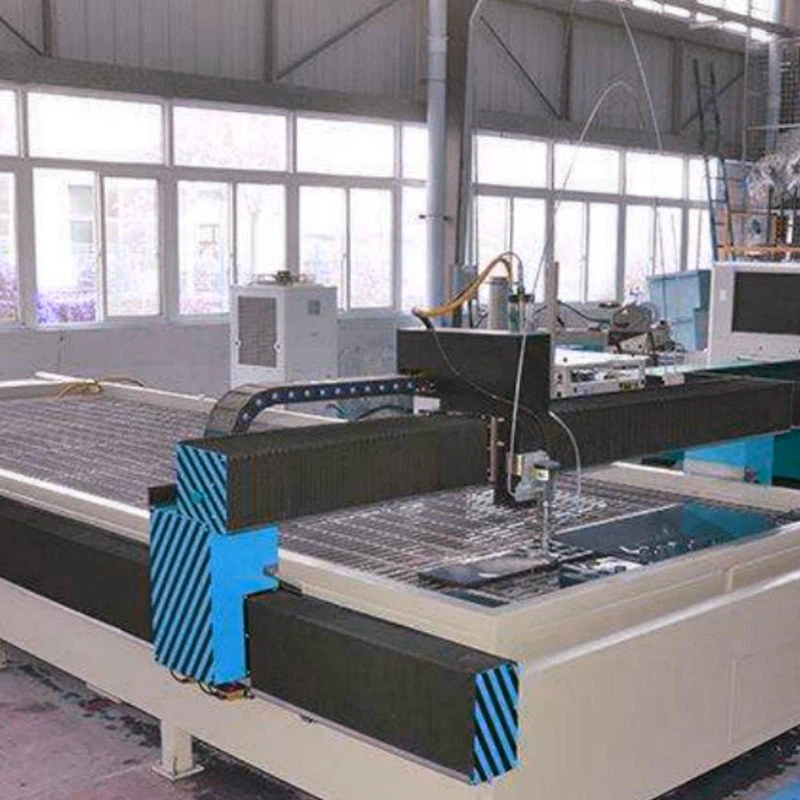

Water cutting

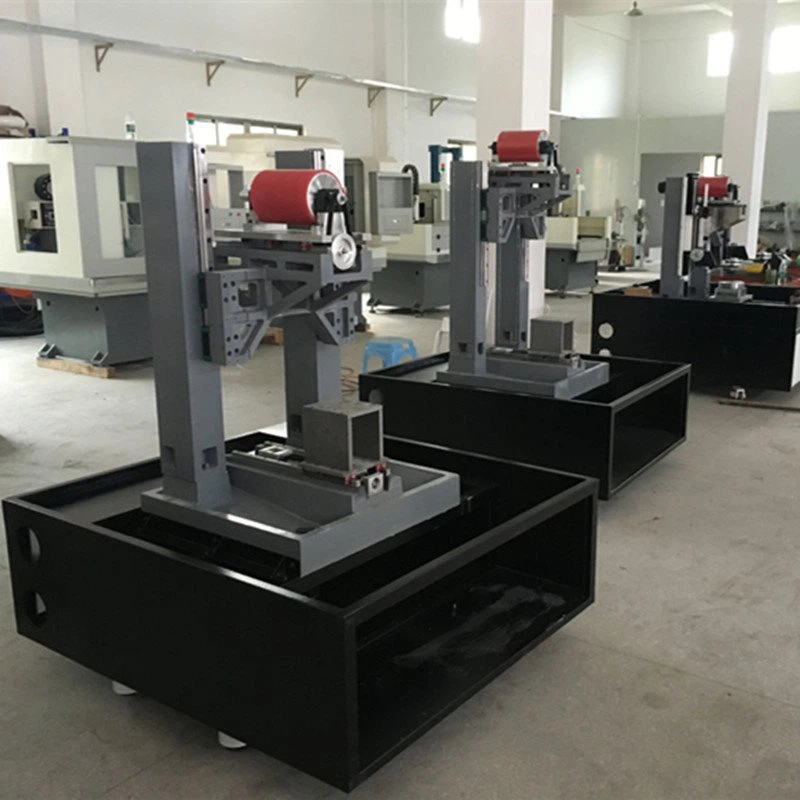

Linear cutting

Application of grade 7 titanium sheets







About us & Certificates

Our advantages

Etermetal has more than ten years export experience and our products are expoerting all over the world( Germany, Italy, France, U.K., U.S, Canada, S.K., Japan, etc.) . We are also ISO 9001 qulity system certified titanium metal products supplier by BV. We have strick quality control and can assure that every order are finished in time and meet clients' & standard requirements. We will supply material test certificates  EN 10204 3.1 as well as other certificates to clients before products shipping.

Certificates
