Ti 6Al4V Grade 5 Titanium Block

Ti6Al4V Grade 5 Titanium Block is a high-quality product made from a combination of titanium, aluminum, and vanadium, which provides excellent strength, durability, and corrosion resistance. This product is commonly used in a wide range of industrial applications, including aerospace and medical industries, due to its unique properties.

 Our make to order titanium blocks can  meet the requirements of the below Standards   :

   ASTM B381 F5 - made by forging

   ASTM F136 -  for medical use

   ASTM B 265  - cut from titanium plates by rolling

   AMS4928 - made by forging for aerospace use

   AMS4911 - made by rolling for aerospace use

Ti 6Al4V Titanium block size available:

      Thickness 20mm Min. -400mm Max.

      Width 20mm Min. -610mm Max.

      Length 20mm Min. - 2500mm Max.

Chemical composition (Max. % )

Tensile strength: 895 Mpa Min

Yield strength: 828 Mpa Min

Elongation in 4D %: 10 Min

Reduction of Area %: 25 Min

Etermetal supply ti 6al4v grade 5 titanium block for aerospace, chemical and medical processing in short delivery time and stable quality with competitive price. Cut-to-size service available and your one-stop titanium metal supplier. Contact and let us know, we can stock material for your projects too.

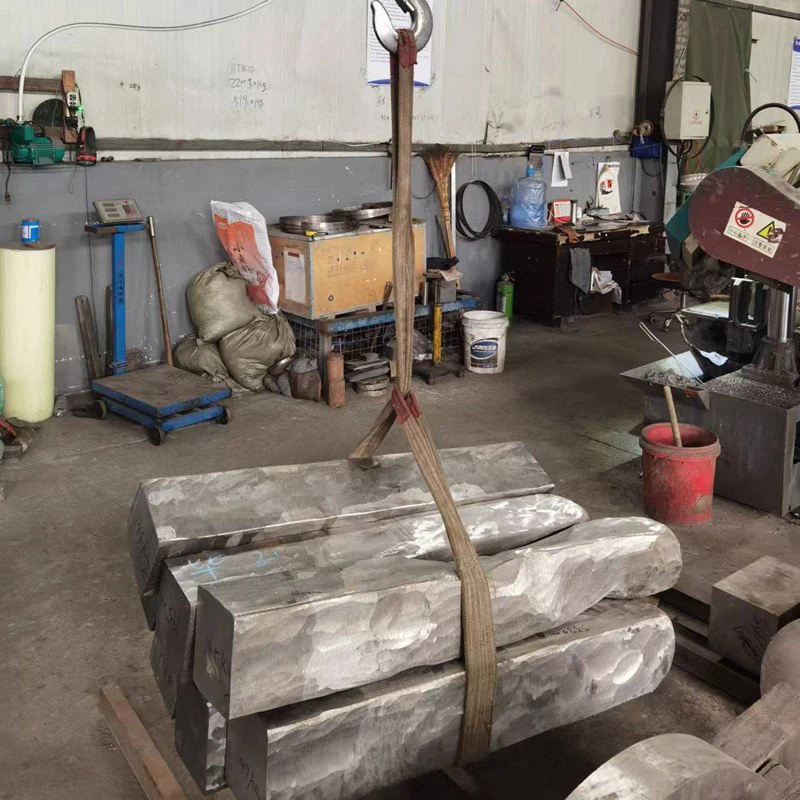

Ti 6Al4V grade 5 Titanium block or flat can be made by forging or cut from titanium plates. The image below is  small  size titanium blocks we supplied and exported to our clients. The dimension is made to order. Tolerance request meets order requirements. If you are looking for grade 5 titanium blocks, plesae do not hesitate contact us. Etermetal is glad to send you more information and supply stable qualified products on time.

The Ti6Al4V Grade 5 Titanium Block is not only lightweight, but also has high mechanical strength, making it suitable for use in areas that require high strength-to-weight ratios. Additionally, the block is temperature-resistant and has excellent thermal and electrical conductivity, which makes it ideal for use in challenging environments.

One of the most significant advantages of the Ti6Al4V Grade 5 Titanium Block is its resistance to corrosion. It has a protective oxide layer that forms on the surface, preventing it from reacting with other materials that it comes in contact with. This layer also maintains the integrity of the material and ensures that the block remains resistant to corrosion even in harsh environments.

Due to its unique properties, the Ti6Al4V Grade 5 Titanium Block is widely used in the aerospace industry. It is used in aircraft components such as landing gear, engine components, and structural components. Similarly, medical implants and prostheses also require materials with high biocompatibility, which is achieved using the Ti6Al4V Grade 5 Titanium Block.

Grade 5 titanium blocks processes in the Mill

titanium forging

titanium forging

titanium block billets

titanium block billets

 1. Are  you factory?

   Yes, we are.

2. If I 'd like some titanium block in different sizes, can you produce?

    Yes, we can. The blocks are made by forging. We have stocked enough titanium billets, they can be forged to any size you would like.

3. Do you only supply grade 5 ti 6Al4V titanium block?

     No, we don't. Other grades of titanium blocks are availble too.  Such as the most popular grade as below:

      Grade 2 Commercial pure titanium block

      Grade 23 titanium block

      Grade 7  titanium block

      Grade 12 titanium block

      Ti 6al4v ELI titanium block

4. I'd like some titanium blocks for industrial use. Can you give me some suggestions?

     Yes, I'm glad to suggest you choose ASTM B381  titanium blocks by forging. If you 'd like stronger ones, please choose titanium alloy F5. If you'd prefer better corrosion resistance, please choose commercial pure titanium.

If you did not find what you are looking for in our website, please contact us for more information. Our salesman will reply and help you within 24 hours.
